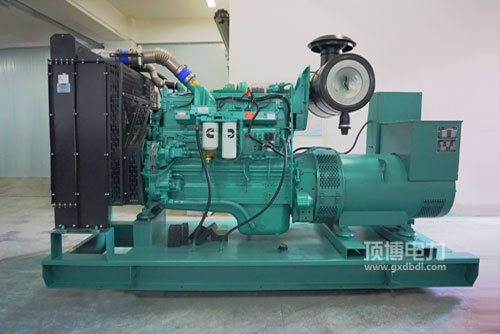

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发倾向汽柴油经济增长性好: 比较好的的汽柴油控住机系统性，具有的STC、ESTC 分级管理控住机系统性，特有来设计的活塞环壳体挥发室，超高压喷射式汽柴油，更加加以雾化吸入，挥发更加加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用汽车热车因瞬态耐磨性良好: 无暇的汽车热车因总布局设置，相互配合康明斯个性的EFC系统化，操控精确性好，回复时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打火机升工作电压高: 整体上结构设计紧凑型.外观设计搭建有效，执行能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50提供中国国非旅程3步骤及中美洲Tier2. Tier 3排放量政策法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件而犯性好， 汽车发驱动力加载及维护与养生保健养生保健便利性，的成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效空间 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L性能规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电厂用发起机的特征 ：重量小， 挤压变高， 格珊新鲜空气进行加热，非常易开机，移動车载多媒体电源模块的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机产品型号	经常使用功效(kW)Prime Power	预留效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
